60/80 Amp 12 Volt Relay “Form C” SPDT “RoHS” Compliant
The 60/80 amp 12 volt relay is designed to handle heavy electrical loads with precision and reliability. With 60/80 amp rated SPDT contacts, it’s ideal for demanding automotive and 12V systems requiring high-current switching.

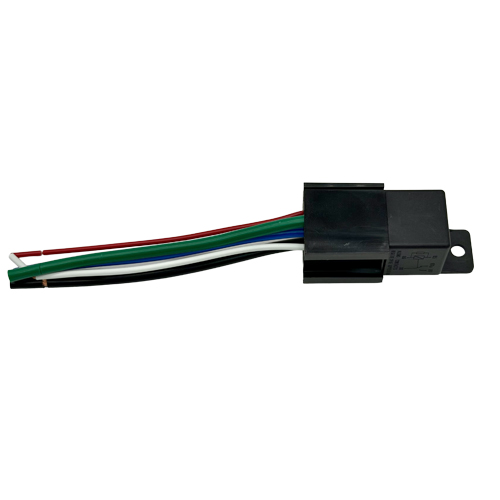

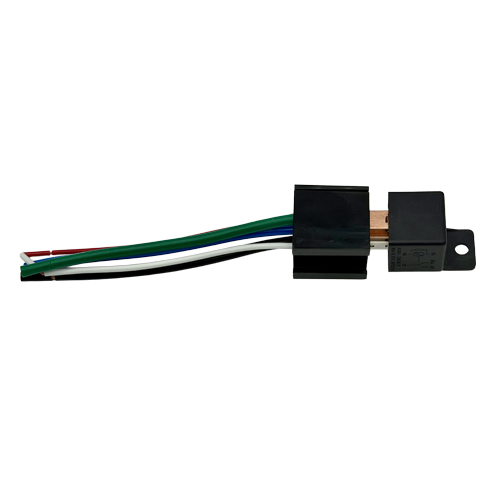

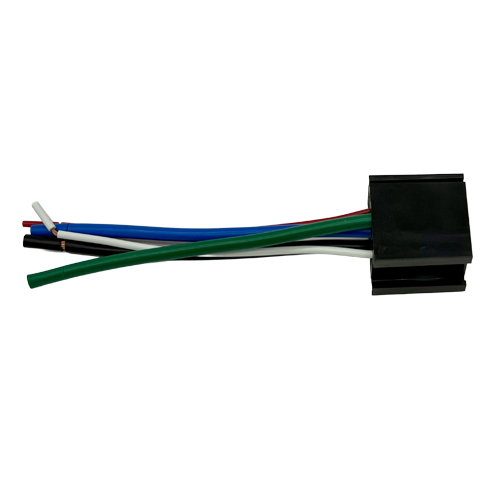

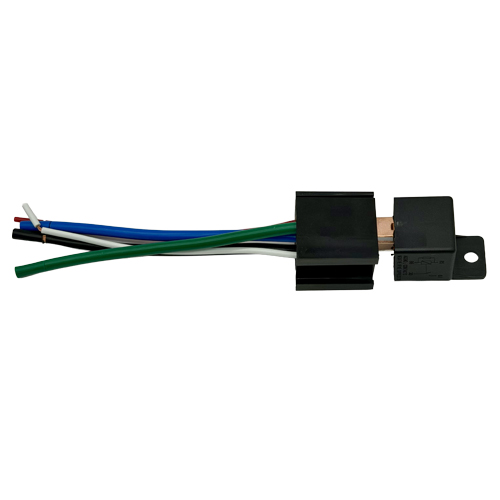

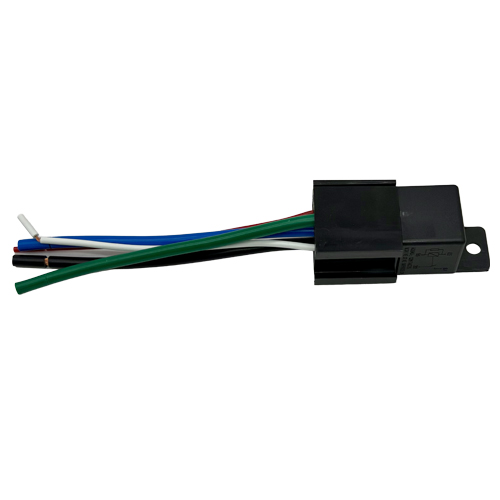

Built-in negative spike protection safeguards sensitive electronics by preventing voltage backflow and polarity issues when the coil disengages. The relay includes a high-current interlocking socket featuring 5″ 12-gauge power leads and 16-gauge coil wires for secure, efficient connections.

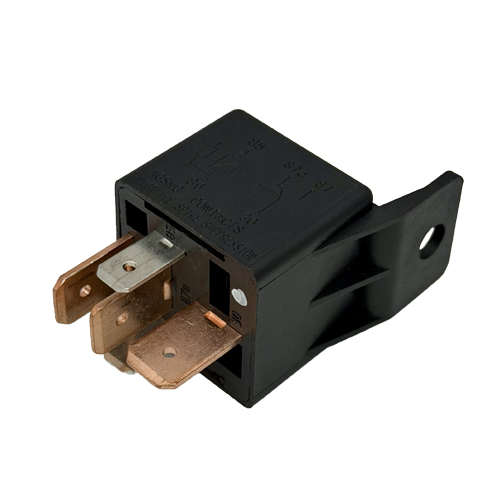

It fits standard 5-pin configurations and uses oversized contact pins for better conductivity and durability.
Key Features:
-
60A/80A contact rating for high-current switching
-
SPDT – Single Pole Dual Throw configuration
-
12V coil with 8V minimum trigger voltage
-
Built-in spike protection for electronic safety
-
Standard 5-pin layout: 87, 87a, 30, 86, 85
-
Includes interlocking socket with pre-wired leads
-
Power consumption: 143 mA @ 12V
-
Dimensions: 1-1/8″ (W) x 1-1/4″ (D) x 2″ (H)
SKU: BU5076
