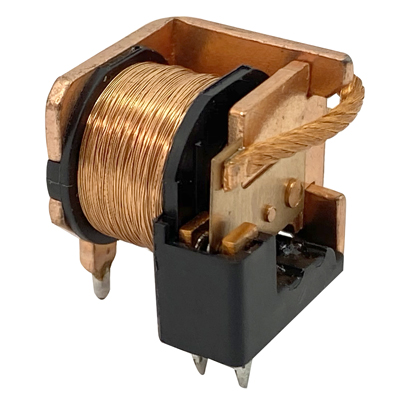

The image shows a close up photo of the open frame 30/40 amp 12V relay.

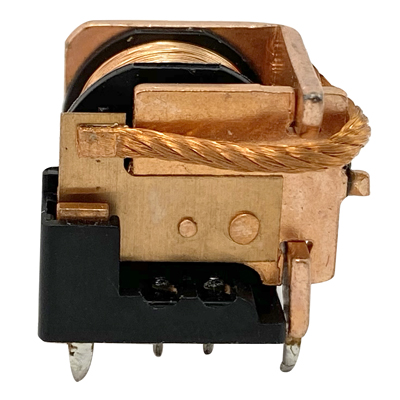

Open Frame 30/40 Amp 12 Volt Relay - Image 2

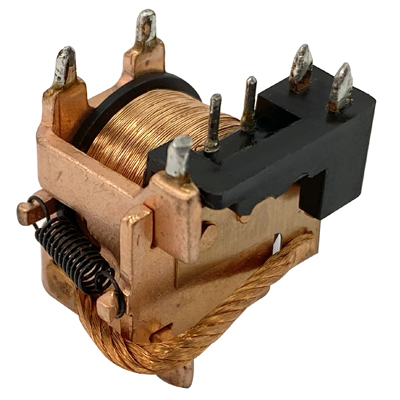

Open Frame 30/40 Amp 12 Volt Relay - Image 3

Open Frame 30/40 Amp 12 Volt Relay

$1.68

30/40 Amp 12 Volt Relay

SKU: BU5083B Category:

Open Frame 30/40 Amp 12 Volt Relay

This relay is a 30/40 amp open frame relay designed for PCB (printed circuit board) mounting. Its compact form factor and SPDT (Single Pole Double Throw) configuration make it ideal for automotive electronics, custom circuitry, and embedded control systems. Featuring “Form C” contacts and a 12V coil, this relay handles moderate switching loads while maintaining a reliable electrical footprint.

Key Features:

  • Open frame design for PCB mounting

  • 30A continuous / 40A peak current rating

  • 12VDC rated coil

  • SPDT (Form C) contact layout

  • Ideal for embedded systems, automotive, and low-profile builds

Weight 0.15 lbs
Dimensions 2 × 2 × 2 in

Open Frame 30/40 Amp 12 Volt Relay

This relay is a 30/40 amp open frame relay designed for PCB (printed circuit board) mounting. Its compact form factor and SPDT (Single Pole Double Throw) configuration make it ideal for automotive electronics, custom circuitry, and embedded control systems. Featuring “Form C” contacts and a 12V coil, this relay handles moderate switching loads while maintaining a reliable electrical footprint.

Key Features:

  • Open frame design for PCB mounting

  • 30A continuous / 40A peak current rating

  • 12VDC rated coil

  • SPDT (Form C) contact layout

  • Ideal for embedded systems, automotive, and low-profile builds
