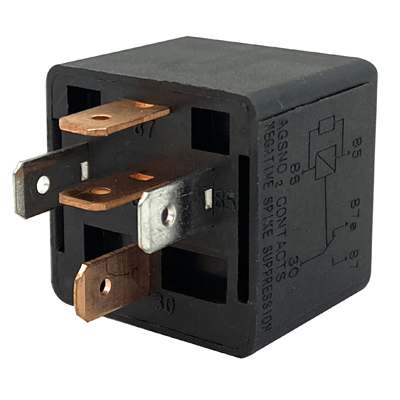

The image is a close up photo of a 40/60 Amp 12 Volt Relay Without Mounting Tab.

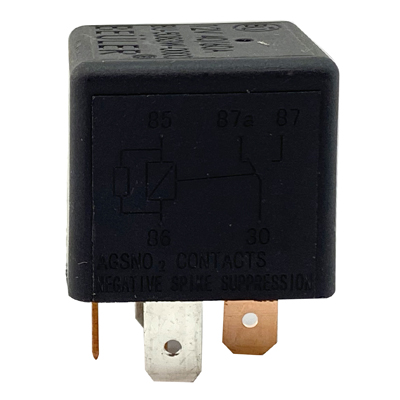

40/60 Amp 12 Volt Relay Without Mounting Tab - Image 2
40/60 Amp 12 Volt Relay Without Mounting Tab - Image 3
40/60 Amp 12 Volt Relay Without Mounting Tab - Image 4

40/60 Amp 12 Volt Relay Without Mounting Tab

$3.96

40/60 Amp 12 Volt Relay

SKU: BU5083W Category:

40/60 Amp 12 Volt Relay Without Mounting Tab “Form C” SPDT “RoHS” Compliant

This particular relay is a compact, high-performance automotive relay rated for 40 amps continuous and up to 60 amps peak. Designed in a standard Bosch 5-pin SPDT (Form C) layout, it’s ideal for 12V electrical systems in vehicles and equipment. This version omits a mounting tab for installations with space constraints or custom brackets. Built to RoHS compliance standards, it’s environmentally conscious while offering reliable switching performance. Suitable for a wide range of automotive, marine, and industrial applications.

Key Features:

  • 12V SPDT relay (Form C) with 5-pin Bosch-style configuration

  • Rated for 40A continuous / 60A peak

  • No mounting tab – ideal for compact installations

  • RoHS compliant for eco-conscious applications

  • Durable construction for automotive and industrial use

  • Standard pin terminals: 30, 85, 86, 87, 87a

  • Compatible with most standard relay sockets and terminals

  • Dimensions: 1-1/8″ (W) x 1-1/4″ (D) x 1-5/16″ (H)

Fully compatible with the following standard 5-pin relay sockets from BoardRelays.com!

Also, compatible with the following products:

Relay Cross Reference:

  • Picker: PC792A-1C-C-12C-RN-X
  • Song Chuan: 896H-1CH-C-R1-U03-12VDC, 896H-1CH-C-R1-U24-12VDC
  • TE: VF4-15F21-S01
  • TE (Potter & Brumfiled): V23234-A0001-X037, V23234A1001X036, V23234-A1001-X032
  • Blue Bird: 01868017
  • IC Bus: 3607384C1, 2012557C1, 92502600
Weight 0.15 lbs
Dimensions 2 × 2 × 2 in

40/60 Amp 12 Volt Relay Without Mounting Tab “Form C” SPDT “RoHS” Compliant

This particular relay is a compact, high-performance automotive relay rated for 40 amps continuous and up to 60 amps peak. Designed in a standard Bosch 5-pin SPDT (Form C) layout, it’s ideal for 12V electrical systems in vehicles and equipment. This version omits a mounting tab for installations with space constraints or custom brackets. Built to RoHS compliance standards, it’s environmentally conscious while offering reliable switching performance. Suitable for a wide range of automotive, marine, and industrial applications.

Key Features:

  • 12V SPDT relay (Form C) with 5-pin Bosch-style configuration

  • Rated for 40A continuous / 60A peak

  • No mounting tab – ideal for compact installations

  • RoHS compliant for eco-conscious applications

  • Durable construction for automotive and industrial use

  • Standard pin terminals: 30, 85, 86, 87, 87a

  • Compatible with most standard relay sockets and terminals

  • Dimensions: 1-1/8″ (W) x 1-1/4″ (D) x 1-5/16″ (H)

Fully compatible with the following standard 5-pin relay sockets from BoardRelays.com!

Also, compatible with the following products:

Relay Cross Reference:

  • Picker: PC792A-1C-C-12C-RN-X
  • Song Chuan: 896H-1CH-C-R1-U03-12VDC, 896H-1CH-C-R1-U24-12VDC
  • TE: VF4-15F21-S01
  • TE (Potter & Brumfiled): V23234-A0001-X037, V23234A1001X036, V23234-A1001-X032
  • Blue Bird: 01868017
  • IC Bus: 3607384C1, 2012557C1, 92502600
